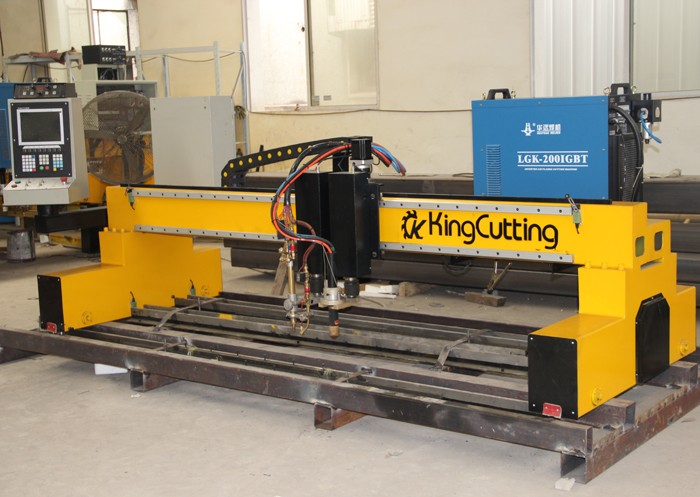

Best cnc plasma cutting machine metal plasma cutter with affordable prices
Product Features
*KCP-A- 3000 model plasma and oxyfuel cutting machine, one - time finished by large gantry milling machine, increasing the surface high smoothness, rail groove is also one - time finished by large milling machine, increasing the beam rail straightness and parallelism to ensure the positioning accuracy.
*Adopt hollow design, increasing structural strength, to remove the hard power and take away the heat when cutting and prevent the frame from deformation.
*The Longitudinal Transmission: bilateral driving to make sure stable running
*The Bilateral rack and pinion transmission without engagement gap, make the machine running smoothly when the ground deformed
*Lifting Body: this configuration with a low failure rate, easy to detect. Can realize the user’s own adjustment if the mobile body tilts after a long time application.
*Transmission sublance, its main torch is driven by a traction rope sublance drive, sing rop drive, flexible, no easy to break.
*KCP-A- 3000 model plasma and oxyfuel cutting machine, one - time finished by large gantry milling machine, increasing the surface high smoothness, rail groove is also one - time finished by large milling machine, increasing the beam rail straightness and parallelism to ensure the positioning accuracy.
*Adopt hollow design, increasing structural strength, to remove the hard power and take away the heat when cutting and prevent the frame from deformation.
*The Longitudinal Transmission: bilateral driving to make sure stable running
*The Bilateral rack and pinion transmission without engagement gap, make the machine running smoothly when the ground deformed
*Lifting Body: this configuration with a low failure rate, easy to detect. Can realize the user’s own adjustment if the mobile body tilts after a long time application.
*Transmission sublance, its main torch is driven by a traction rope sublance drive, sing rop drive, flexible, no easy to break.
| Model | KCP-A,Standard Gantry |
| Cutting size | 2200*6500mm |
| Lifting travel | ≤180mm |
| Input voltage | 220V±10%，50/60Hz |
| Application | Metal, Carbon Steel, Aluminium, Copper |
| Cnc control system | Starfire SF2500 or Fangling F2300B （10.4" LCD display) |
| Cutting mode | Plasma and oxyfuel |
| Oxyfuel cutting thickness | 6-180mm (carbon steel) |
| Plasma cutting thickness | according to plasma source |
| Cutting speed | 0-6000m/min |
| Running accurancy | ≤0.1mm |
| Motor | Mige brand(Japanese Servo Motor) |
| Longitudinal rail | Fine grinded 24kg |
| USB interface | U-disk file transfer available |
| Software | Standard Fastcam or starfire |
