Plate and Tube Integrated Laser Cutting Machine
cnc laser cutting machine 3000w fiber laser cutting machine laser pipe cutting machine suitable for stainless steel,carbon steel,silicon steel,aluminum alloy,titanium alloy,galvanized steel,pickle plate,aluminum - plating zinc plate,metallic copper and other metals.
1.Fiber laser cutting machine adopts 3D generation aluminum gantry.
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.After aging treatment,its strength can reach 6061 T6 which is the strongest strength of all gantries.Aviation aluminum has many advantages,such as good toughness,light weight,corrosion resistance,anti - oxidation,low density,and greatly increase the processing speed.
2.Without manual operation,it can focus automatically:Without manual focusing.Bigger adjustment range.Long service life
3.Independent Control Cabinet:Dust - proof:All electrical components and laser source are built - in to the independent control cabinet with a dust - proof design to prolong the lifespan of the electrical components.Automatic Thermostat:The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
4.Stainless Steel Protection Design: The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine’s surface.
1.Fiber laser cutting machine adopts 3D generation aluminum gantry.
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.After aging treatment,its strength can reach 6061 T6 which is the strongest strength of all gantries.Aviation aluminum has many advantages,such as good toughness,light weight,corrosion resistance,anti - oxidation,low density,and greatly increase the processing speed.
2.Without manual operation,it can focus automatically:Without manual focusing.Bigger adjustment range.Long service life
3.Independent Control Cabinet:Dust - proof:All electrical components and laser source are built - in to the independent control cabinet with a dust - proof design to prolong the lifespan of the electrical components.Automatic Thermostat:The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
4.Stainless Steel Protection Design: The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine’s surface.
China Plate and Tube Integrated Laser Cutting Machine

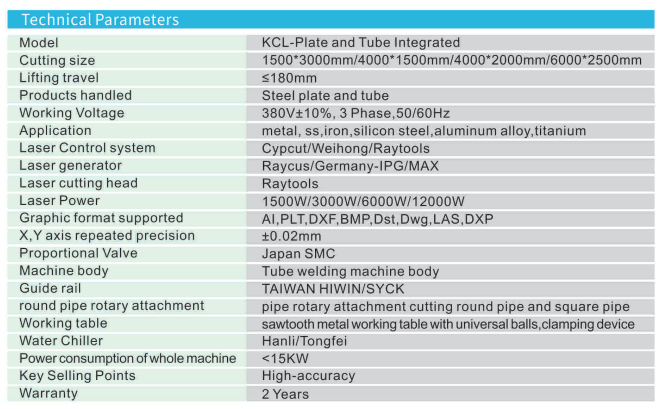

| Model | KCL-Tube with plate |
| Cutting size | 1500*3000mm/4000*1500mm/4000*2000mm/6000*2500mm |
| Lifting travel | ≤180mm |
| Products handled | Steel plate and tube |
| Working Voltage | 380V±10%, 3 Phase,50/60Hz |
| Application | metal, ss,iron,silicon steel,aluminum alloy,titanium |
| Laser Control system | Cypcut/Raytools/Max/Raycus |
| Laser generator | Raycus/Germany-IPG/MAX |
| Laser cutting head | Raytools/Max |
| Laser Power | 1.5kw,3kw,6kw,12kw,20kw,30kw |
| Graphic format supported | AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP |
| X,Y axis repeated precision | ±0.02mm |
| Proportional Valve | Japan SMC |
| Machine body | Tube welding machine body |
| Guide rail | TAIWAN HIWIN/SYCK |
| Round pipe rotary attachment | pipe rotary attachment cutting round pipe and square pipe |
| Working table | sawtooth metal working table with universal balls,clamping device |
| Water Chiller | Hanli/Tongfei |
| Power consumption of whole machine | <15KW |
| Key Selling Points | High-accuracy |
| Warranty | 2 Years |
