H Beam SteelPlasma Cutting Machine

H Beam SteelPlasma Cutting Machine

Application: metal square/rectangular/round pipes and H/I/L/U beams cutting with different shapes
Cutting thickness: 1 - 50mm for plasma cutting

Diameter/width of workpiece: 60 - 300mm for KCP - H - 300; 60 - 400mm for KCP - H - 400, or to be customized

Length of workpiece: 6000mm or to be customized

Main features:
--Multiple axes cutting, with profile end bevel cutting available for seamless welding.

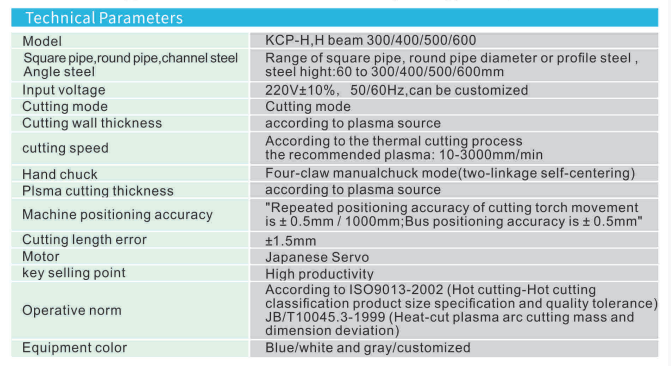

--Not only plasma torch but also flame torch can be equipped, with the cutting thickness up to 200mm, for detail cutting thickness for each cutting mode, please refer to the "Cutting mode and cutting thickness" TABLE below.
--Automatic ignition when cutting by flame;
--Choose different patterns directly from drawing library to meet your cutting requirements, or import AUTO CAD patterns from a USD disk to the machine, the machine will automatically cut the patterns.
--A wide range of materials can be processed, including square/rectangular/round pipes and H/I/L/U beams.
--All the cutting parameters can be customized to cut longer or bigger workpieces.
