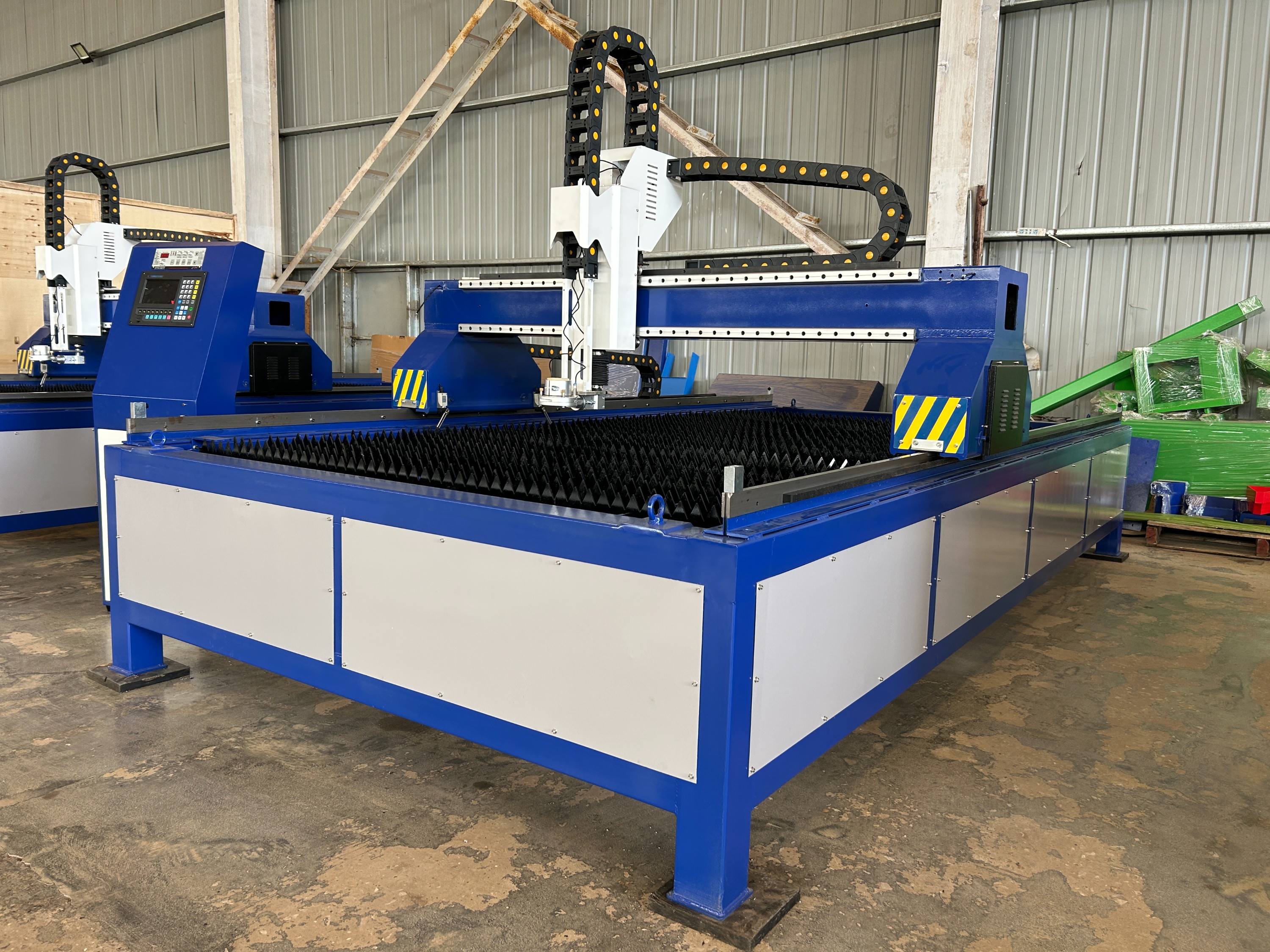

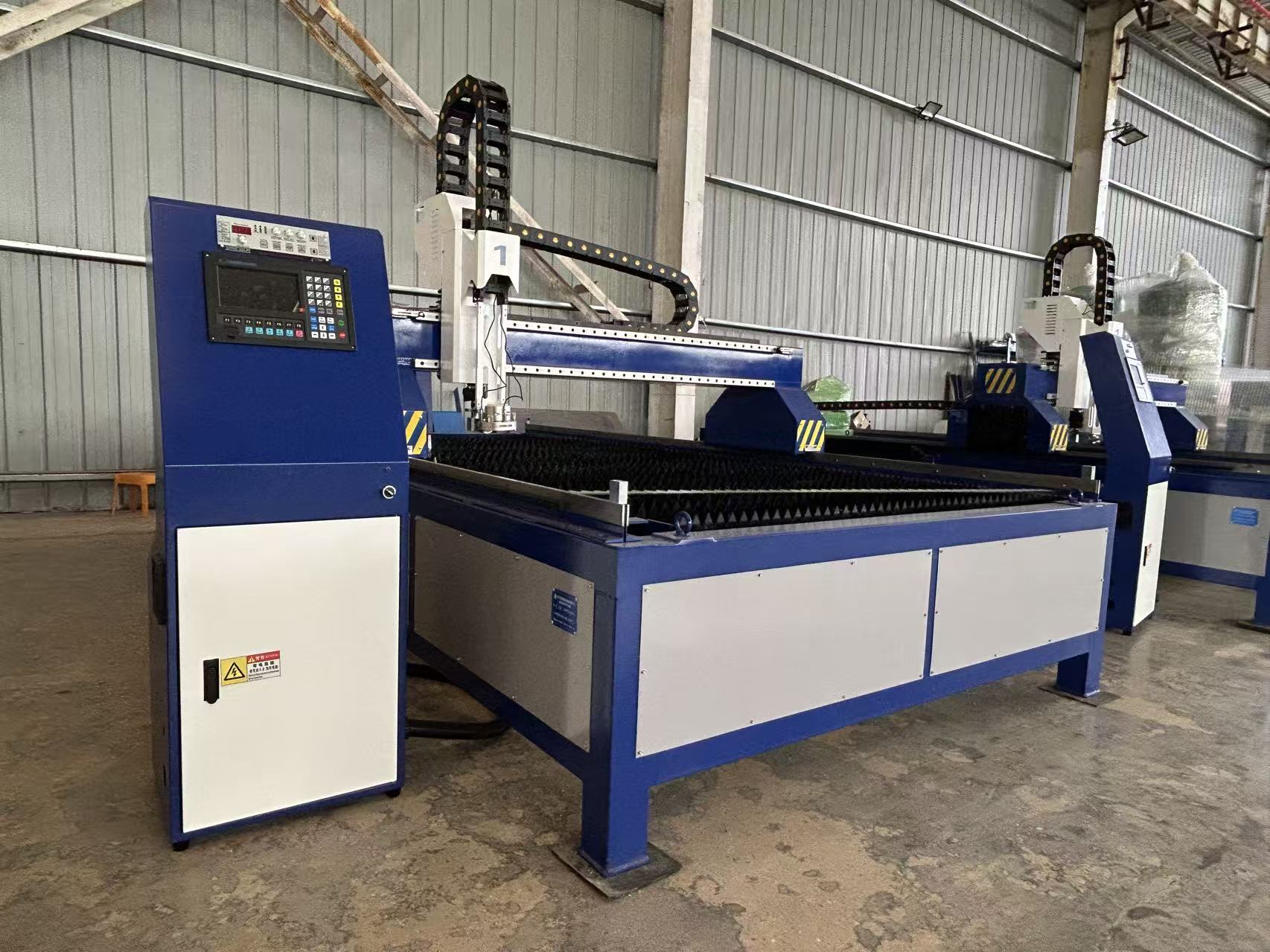

Table Plasma Cnc Cutting Machine
Specification:
--Bench model, plasma, flame, both plasma and flame cutting machine
--Bench structure, Y axis uses dual-motor dual-driven system, X, Y, Z axes all use dual straight rail that make the machine driving smoothly with high precision.
--The kerf is small, tidy and avoid a second dressing processing.
--It can apply to iron sheet, the aluminum sheet, the galvanized sheet, hardened steel plates, and metal plates and so on.
--The numerical control system disposes high, the automatic striking arc, the performance is stable.
--Support Wentai, Australia Fastcam, Germany IBE Software, FreeCAM software, produce standard G code format documents, also can change software to read AUTO CAD software produce DXF format documents. The control system uses the U disk to exchange processing document, easy to operate.
--Bench model, plasma, flame, both plasma and flame cutting machine
--Bench structure, Y axis uses dual-motor dual-driven system, X, Y, Z axes all use dual straight rail that make the machine driving smoothly with high precision.
--The kerf is small, tidy and avoid a second dressing processing.
--It can apply to iron sheet, the aluminum sheet, the galvanized sheet, hardened steel plates, and metal plates and so on.
--The numerical control system disposes high, the automatic striking arc, the performance is stable.
--Support Wentai, Australia Fastcam, Germany IBE Software, FreeCAM software, produce standard G code format documents, also can change software to read AUTO CAD software produce DXF format documents. The control system uses the U disk to exchange processing document, easy to operate.
Table Plasma Cnc Cutting Machine
| Model | KCP-T,Table |
| Cutting size | 1500*3000mm |
| Lifting travel | ≤180mm |
| Input voltage | Metal, Carbon Steel, Aluminium, Copper |
| Application | Fangling F2300B or Starfire（10.4" LCD display) |
| Cnc control system | Plasma and oxyfuel |
| Cutting mode | 6-180mm (carbon steel) |
| Oxyfuel cutting thickness | according to plasma source |
| Plsma cutting thickness | according to plasma source |
| Cutting speed | 0-6000m/min |
| Running accurancy | ≤0.1mm |
| Motor | Mige brand(china made stepper) |
| Core components | Bearing, Pump, Gear, motor, Gearbox, PLC, Pressure vessel, Engine |
| Working table | sawtooth metal working table with universal balls,clamping device |
| USB interface | U-disk file transfer available |
| Software | Standard Fastcam or starfire |
