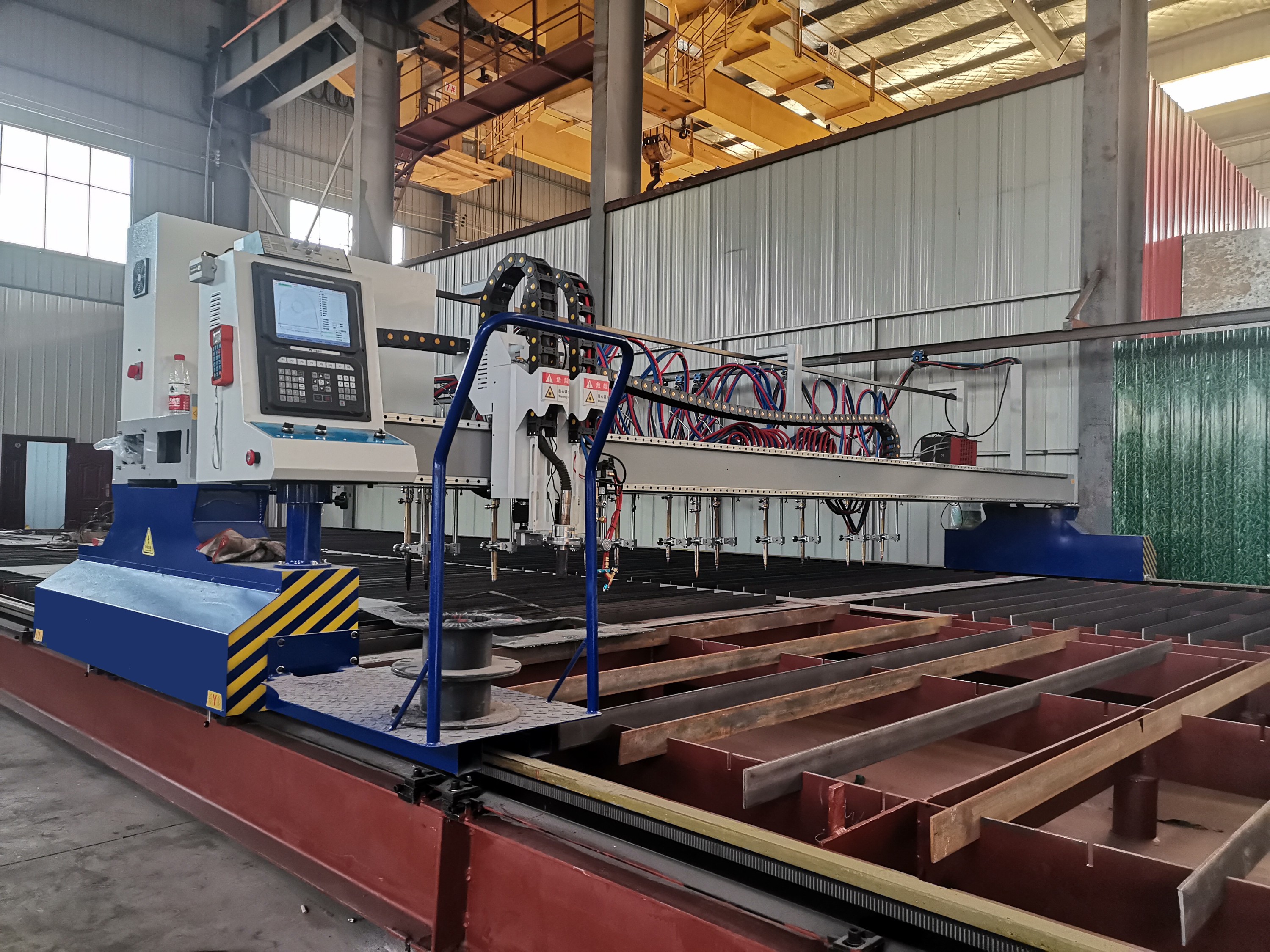

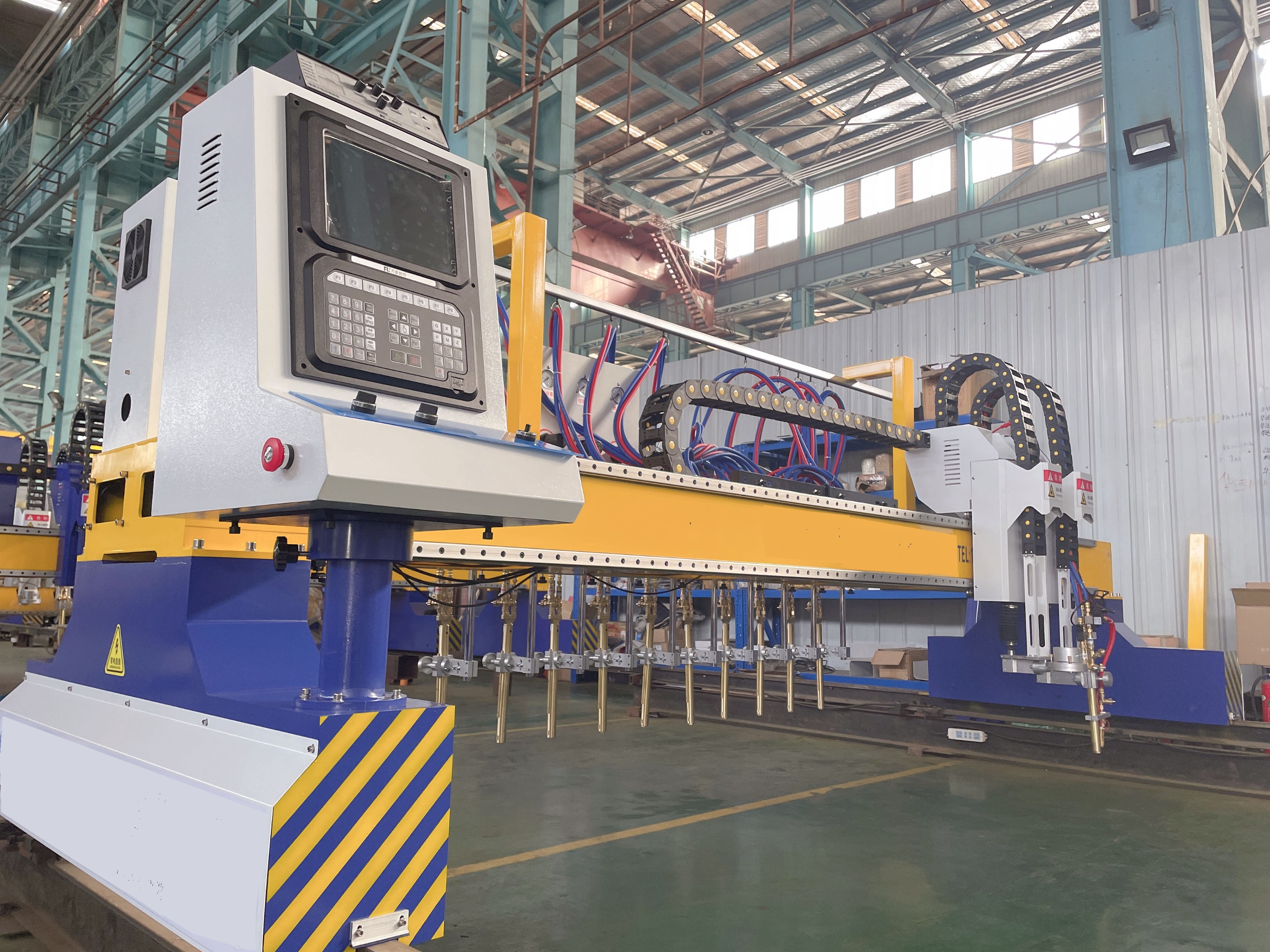

Straight Metal Gantry Cutting Machine
Product Features
Straight Cnc Cutting Machine Flame Gantry Straight Metal Cutting Machine Application
--Applied Material: Carbon steel strip cutting.
--Type: steel plate and metal sheet Mode: Cut off, hole drilling, slotting..
--Industry: Especially for steel structure construction, shipbuilding, and other metal processing
industries.
Straight Cnc Cutting Machine Flame Gantry Straight Metal Cutting Machine Application
--Applied Material: Carbon steel strip cutting.
--Type: steel plate and metal sheet Mode: Cut off, hole drilling, slotting..
--Industry: Especially for steel structure construction, shipbuilding, and other metal processing
industries.
Straight Metal Cutting Machine Factory
| Model | KCP-C,2060,3012,4016 |
| Cutting size | 2200*6500mm/3200*12000mm |
| Longitudinal rail | customized |
| Lifting travel | ≤180mm |
| Input voltage | 220V±10% |
| Cnc control system | Fangling F2300B/F2500B or Starfire |
| Cutting mode | oxyfuel |
| Cutting steel shape | strip metal cutting(only for carbon steel) |
| Oxyfuel cutting thickness | 6-180mm (carbon steel) |
| Applicable industries | Manufacturing plant, sheet metal cutting, machinery, shipbuilding,steel factory, metal workshop |
| Cutting speed | 0-6000m/min |
| Running accurancy | ≤0.1mm |
| Motor | Mige brand(china made stepper) or servo motor |
| Feature | Multifunctional |
| Longitudinal rail | Fine grinded 24kg |
| USB interface | U-disk file transfer available |
| Software | Professional Fastcam or Starcam |
