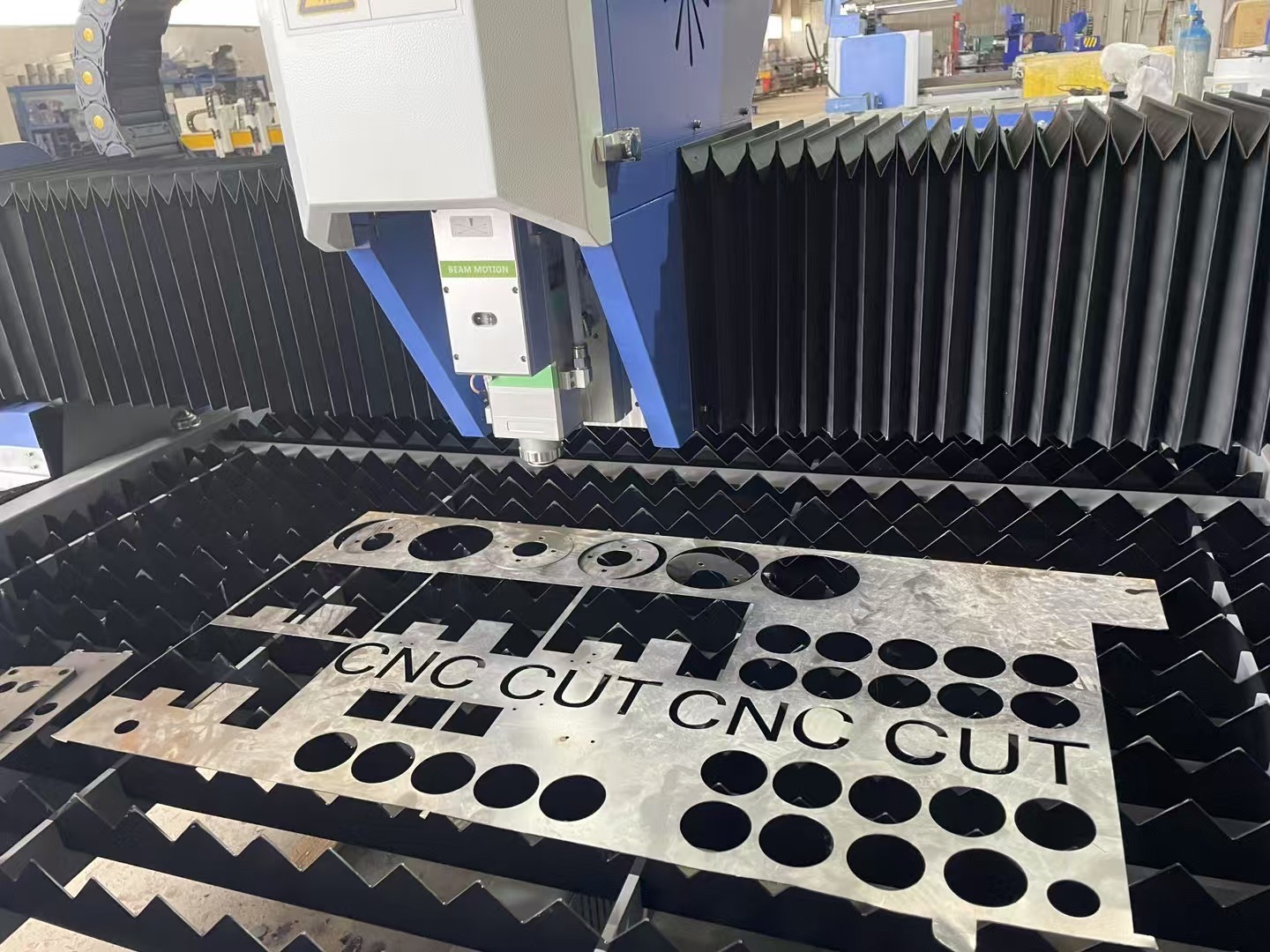

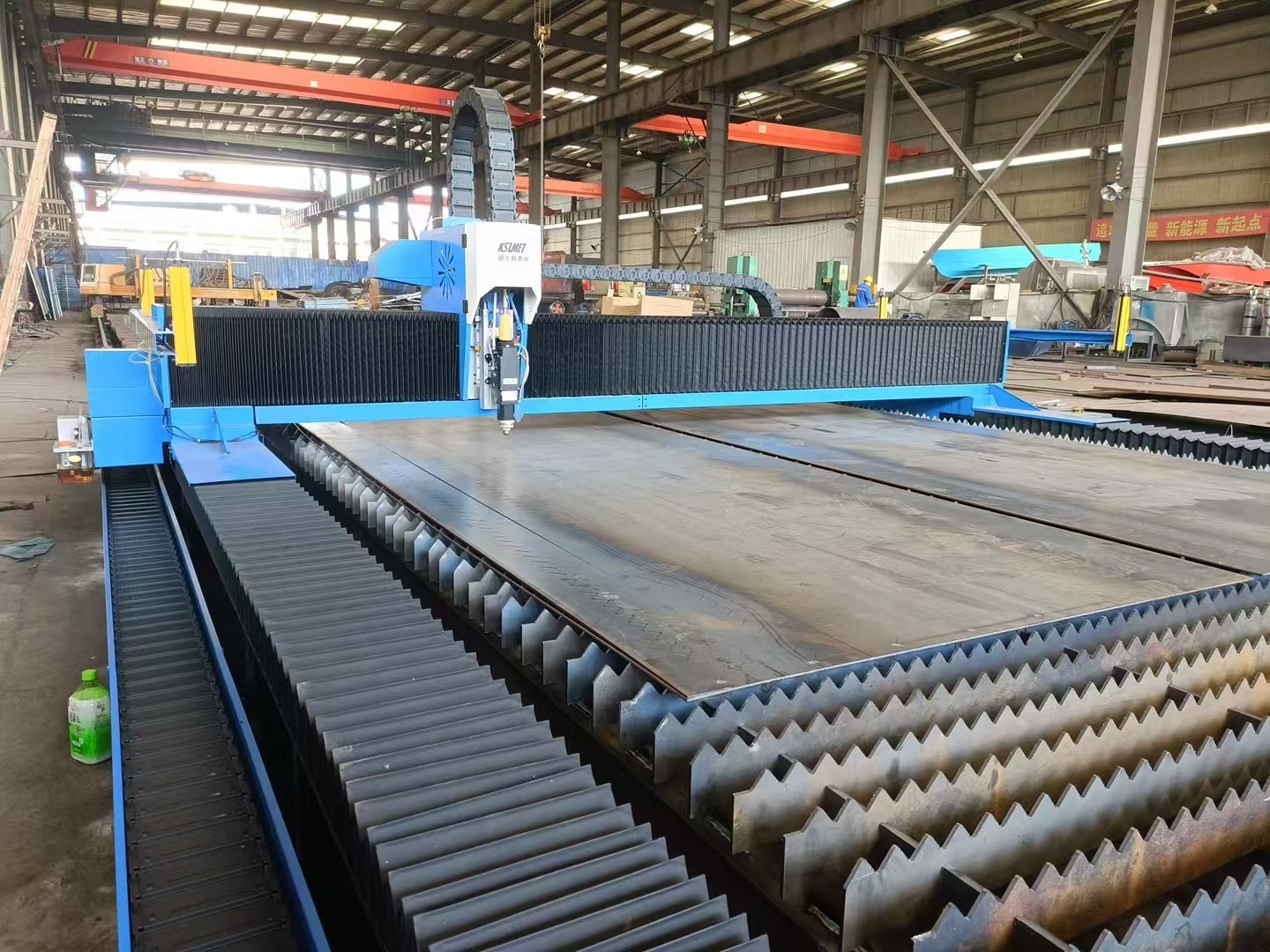

Reliable & efficient industrial fiber laser cutter for metal
--Fiber laser control system can be different brands, Cypcut or Weihong.
--Fiber laser generator could be Max, Raycus or IPG Brands.
--High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
--Table double-drive structure, with imported Taiwan rack&pinion transmission system, improves the production efficiency.
--High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
--Open worktable, simple operation and small space occupation.
--Auto-restart after power blackout and continue previous process.
--3-in-1 control system makes processing more stable.
--High accuracy industrial camera provides high positioning precision.
--High efficiency water-cooling spindle motor configuration.
--Independent control cabinet, separated strong power and weak power design, easy to maintain.
--Fiber laser generator could be Max, Raycus or IPG Brands.
--High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
--Table double-drive structure, with imported Taiwan rack&pinion transmission system, improves the production efficiency.
--High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
--Open worktable, simple operation and small space occupation.
--Auto-restart after power blackout and continue previous process.
--3-in-1 control system makes processing more stable.
--High accuracy industrial camera provides high positioning precision.
--High efficiency water-cooling spindle motor configuration.
--Independent control cabinet, separated strong power and weak power design, easy to maintain.
| Model | KCL-Table |
| Cutting size | 1500*3000mm/2000*4000mm/2000*6000mm |
| Lifting travel | ≤180mm |
| Working Voltage | 380V±10%, 3 Phase,50/60Hz |
| Application | Metal, Carbon Steel, Aluminium, Copper |
| Laser Control system | Cypcut/WeiHong |
| Laser generator | Raycus/Germany-IPG/MAX |
| Laser cutting head | Shenzhen WSX/Raytools |
| Laser Power | 1500W/3000W/6000W/12000W/20000W/30000W/50000W |
| Graphic format supported | AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP |
| X,Y axis repeated precision | ±0.02mm |
| Proportional Valve | Japan SMC |
| Machine body | Tube welding machine body |
| Guide rail | TAIWAN HIWIN/SYCK |
| Working table | sawtooth metal working table with universal balls,clamping device |
| Feature | Water-cooled |
| Water Chiller | Hanli/Tongfei |
| Key Selling Points | High-accuracy |
| Warranty | 2 Years |
