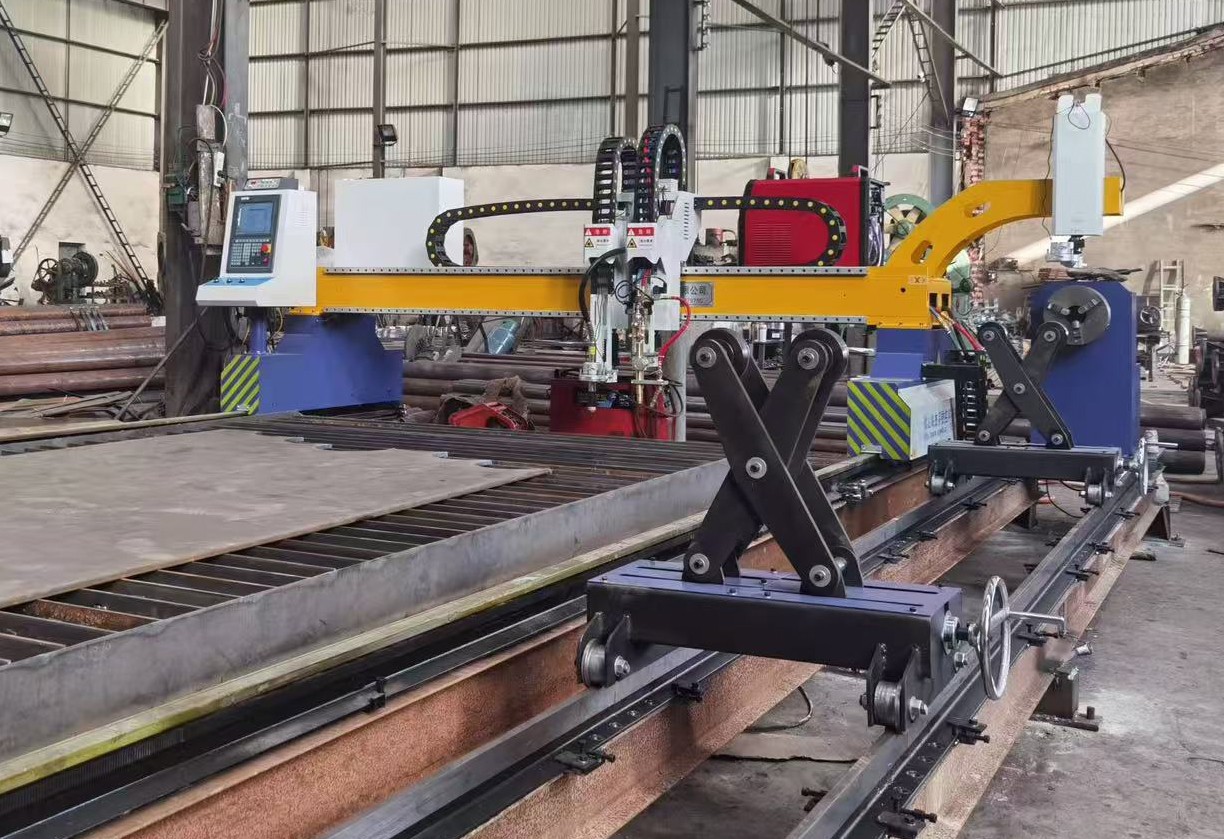

Plate and Tube Integrated Cnc Plasma Cutting Machine
Product Features
--Cutting steel type: round tube
--Figures can be cut: variety of graphics by outspreading intersecting line, can be with bevel.
--Control Axies: 3 axies.
--Diameter: 60 - 600mm or customized (bigger diameter)
--Bevel cutting range: oxyfuel 45 degree, plasma 45 degree.
--Cutting methods: plasma and oxyfuel cutting.
--Pipe max length: 12m
--Pipe clamping method: chunk
--Power - driven: high precision AC servo and dedicated planetary reducer
--Control system: a dedicated intersection line, 6 - axis controller, with quantitative intersection line cutting macro library.
--Cutting steel type: round tube
--Figures can be cut: variety of graphics by outspreading intersecting line, can be with bevel.
--Control Axies: 3 axies.
--Diameter: 60 - 600mm or customized (bigger diameter)
--Bevel cutting range: oxyfuel 45 degree, plasma 45 degree.
--Cutting methods: plasma and oxyfuel cutting.
--Pipe max length: 12m
--Pipe clamping method: chunk
--Power - driven: high precision AC servo and dedicated planetary reducer
--Control system: a dedicated intersection line, 6 - axis controller, with quantitative intersection line cutting macro library.
Plate and Tube Integrated Cnc Plasma Cutting Machine
| Model | KCP-P, plate and tube integrated |
| Pipe diameter | Φ=60～600mm |
| Plasma cutting pipe thickness | δ1=1～12mm (200A) |
| Effective cutting pipe length | 6-12m |
| pipe ovality | ≤1% |
| Cutting speed | 10～2000mm/min |
| translational speed | 10～6000 mm/min |
| Cutting torch axial direction swing angle | α=±45° |
| Cutting torch radial direction swing angle | β=±45° |
| Application | metal, ss,iron,silicon steel,aluminum alloy,titanium |
| Working size for steel plate | 2200*6500mm/3200*12000mm |
| Carring capacity | 2000Kg |
| Core components | Bearing, Pump, Gear, motor, Gearbox, PLC, Pressure vessel, Engine |
| Motor | Panasonic servo motor |
| Reducer | china made |
| Driver | Japanese Panasonic |
| CNC control | Fangling FL6400V2 |
| Key selling point | High productivity |
