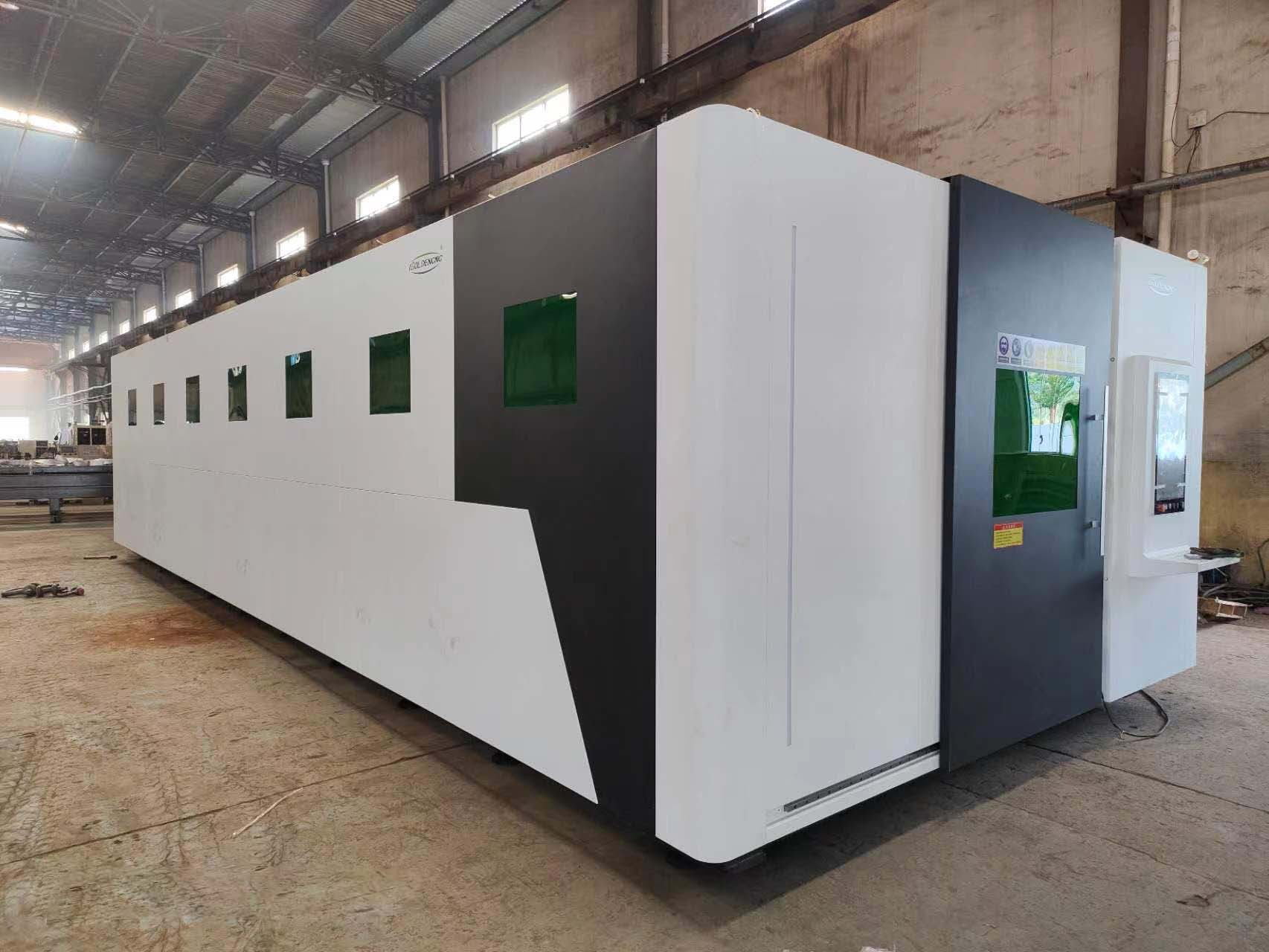

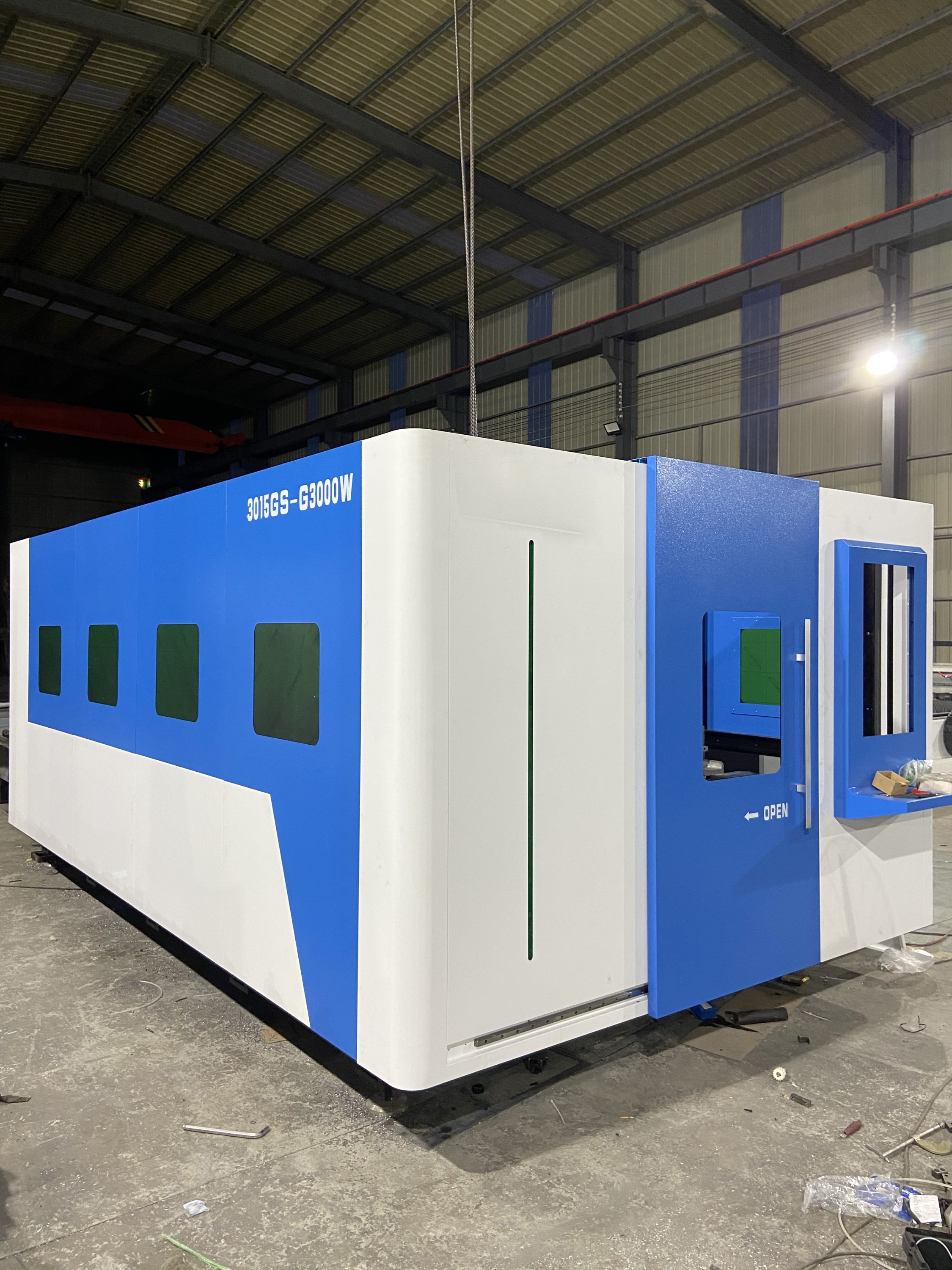

Full Covered Fiber Laser Cutting Machine
--Full covered fiber laser cutting machine can carry up to 6000W/12000w/20000w/30000w laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery, power construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing.
--Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum - plating zinc plate, copper, and other metals.
--Safety and No Pollution with a fully enclosed design.
--The observation window adopts an European CE standard laser protective glass.
--The smoke produced by cutting can be filtrated inside, it's non - polluting and environmentally friendly.
--Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum - plating zinc plate, copper, and other metals.
--Safety and No Pollution with a fully enclosed design.
--The observation window adopts an European CE standard laser protective glass.
--The smoke produced by cutting can be filtrated inside, it's non - polluting and environmentally friendly.
China full covered fiber laser cutting machine manufacturer
| Model | KCL-F, full covered |
| Cutting size | 1500*3000mm/2000*4000mm/2000*6000mm |
| Lifting travel | ≤180mm |
| Working Voltage | 380V±10%, 3 Phase,50/60Hz |
| Application | Metal, Carbon Steel, Aluminium, Copper |
| Control system brand | Cypcut |
| Laser Source Brand | IPG |
| Laser cutting head brand | Raytools |
| Laser Power | 1500W/3000W/6000W/12000W/20000W/30000W/5000W |
| Graphic format supported | AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP |
| X,Y axis max. running speed | 140m/min |
| X,Y axis max. accelerated speed | 1.5G |
| Machine body | Tube welding machine body |
| Guide rail | TAIWAN HIWIN |
| Ball screw | TAIWAN TBI |
| Table | Exchange platform double desk |
| Precision Chiller | Hanli or Tongfei |
| Feature | Automated Loading |
| Key Selling Points | High-accuracy |
| Warranty | 2 Years |
