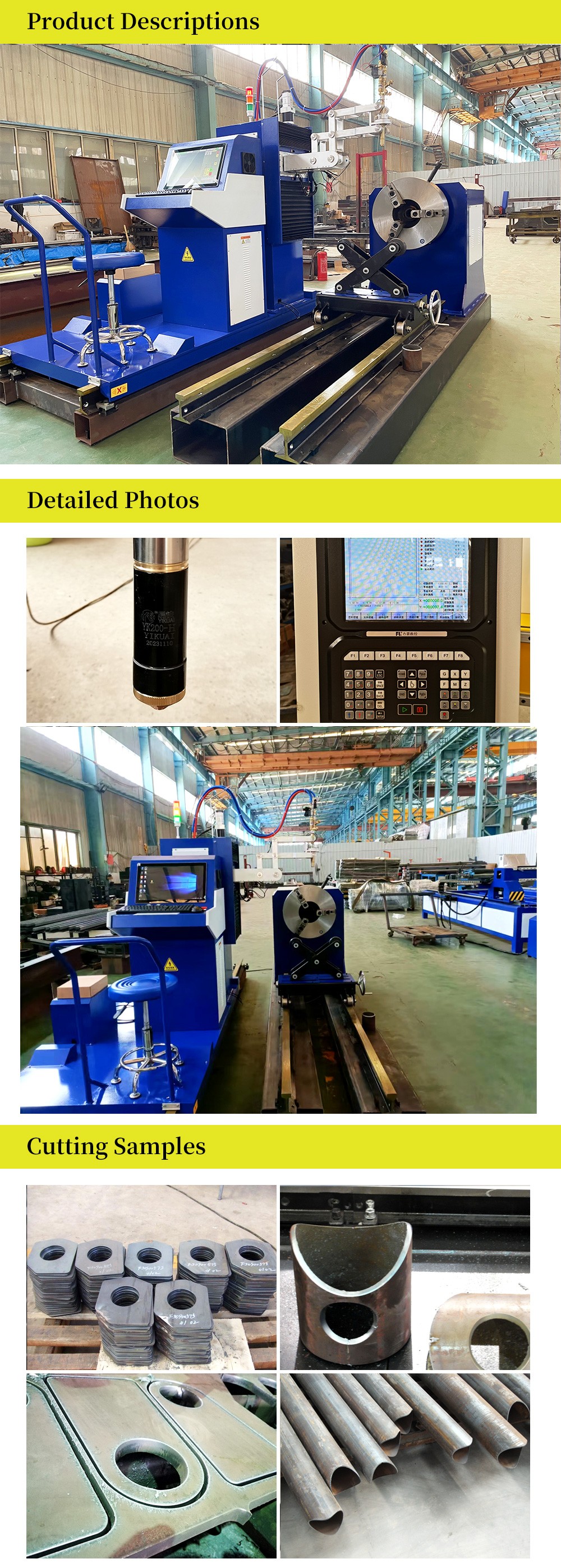

CNC Intersection Pipe Cutting Machine
Brief introduction：
--Industrial Metal tube beveling machine intersection cnc 5 axis plasma automatic pipe cutting machine
--CNC automatic pipe profile cutting machine is special CNC equipment which is used for cutting metal pipe automatically.
--It can realize auto program and auto CNC nesting work for any complicated joint type of intertube, pipe, etc. and can cut any shapes at one time.
--This product is widely used for steel structure, shipbuilding, bridge and heavy machine industries. -------Suitable for cutting cylinder branch, two or three - layer saddle cutting of the main pipe.
--It is suitable for large quantities of professional intersection pipe cutting.
--Cutting material: low carbon steel, stainless steel and non - ferrous metal, etc. machine can be designed according to the different needs of users.
--Industrial Metal tube beveling machine intersection cnc 5 axis plasma automatic pipe cutting machine
--CNC automatic pipe profile cutting machine is special CNC equipment which is used for cutting metal pipe automatically.
--It can realize auto program and auto CNC nesting work for any complicated joint type of intertube, pipe, etc. and can cut any shapes at one time.
--This product is widely used for steel structure, shipbuilding, bridge and heavy machine industries. -------Suitable for cutting cylinder branch, two or three - layer saddle cutting of the main pipe.
--It is suitable for large quantities of professional intersection pipe cutting.
--Cutting material: low carbon steel, stainless steel and non - ferrous metal, etc. machine can be designed according to the different needs of users.
CNC Intersection Pipe Cutting Machine
| Model | KCP-P,Intersection pipe |
| Pipe diameter | Φ=60～600mm，100-1000mm (customized) |
| Plasma cutting pipe thickness | δ1=1～12mm (200A) |
| Effective cutting pipe length | 6-12m |
| Pipe ovality | ≤1% |
| Cutting speed | 10～2000mm/min |
| Translational speed | 10～6000 mm/min |
| Cutting torch axial direction swing angle | α=±45° |
| Cutting torch radial direction swing angle | β=±45° |
| Max pipe loading | 2000Kgs |
| Motor | Panasonic servo motor |
| Gearbox | SEW gearbox |
| Driver | Japanese Panasonic |
| CNC control | Fangling FL6400V2 |
| Number of axis | 5 axis |
| Working temperature | 45℃ |
| Humidity | <90%, no condenstion |
| Suroundings | Ventilation, no big shake |
| Warranty | 2 years |
