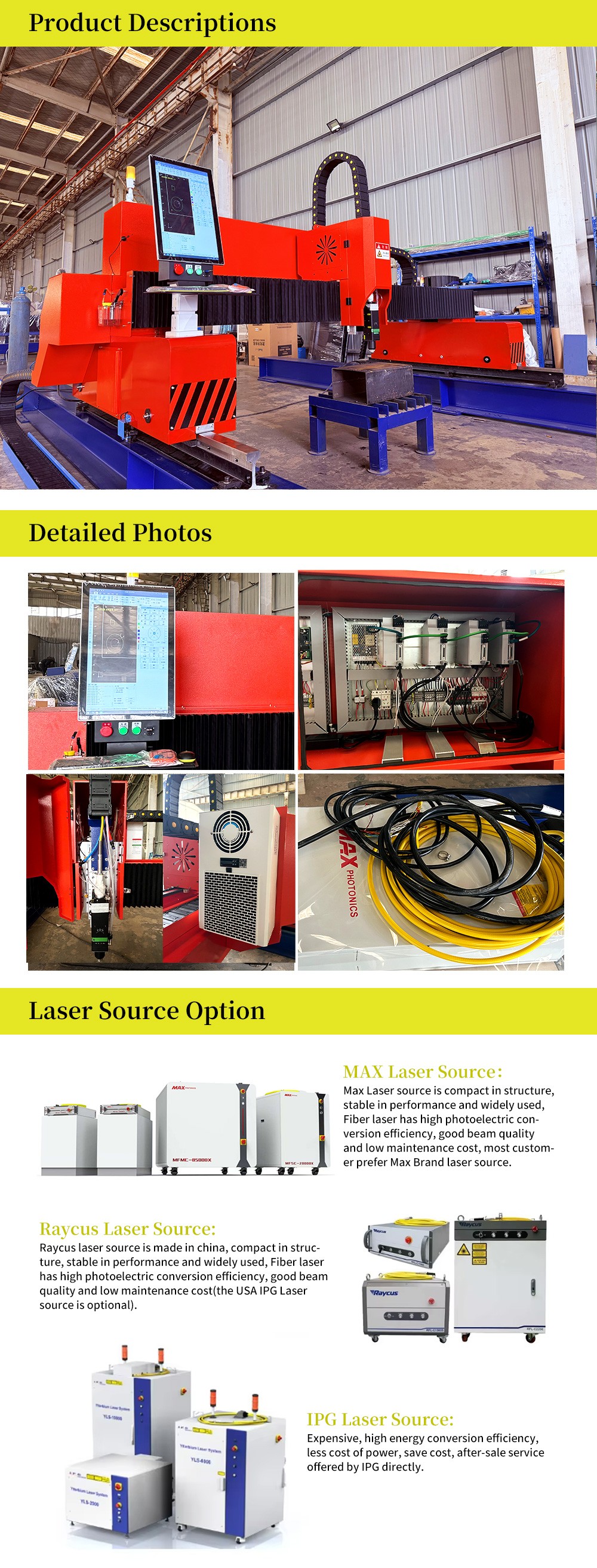

Gantry Fiber Laser Cutting Machine
--Fiber laser control system can be different brands, Cypcut or Weihong.
--Fiber laser generator could be Max, Raycus or IPG Brands.
--Customized format ranging from 3 to 8 meters, tailored to the workshop space;
--Gantry dual drive ensures high-stability and high-precision cutting;
--The cutting head moves laterally, making the cutting of wide plates more powerful;
--Open worktable, simple operation and small space occupation;
--Auto restart after power blackout and continue previous process.
--3-in-1 control system makes processing more stable.
--High accuracy industrial camera provides high positioning precision.
--High efficiency water-cooling spindle motor configuration.
--Independent control cabinet, separated strong power and weak power design, easy to maintain.
--Fiber laser generator could be Max, Raycus or IPG Brands.
--Customized format ranging from 3 to 8 meters, tailored to the workshop space;
--Gantry dual drive ensures high-stability and high-precision cutting;
--The cutting head moves laterally, making the cutting of wide plates more powerful;
--Open worktable, simple operation and small space occupation;
--Auto restart after power blackout and continue previous process.
--3-in-1 control system makes processing more stable.
--High accuracy industrial camera provides high positioning precision.
--High efficiency water-cooling spindle motor configuration.
--Independent control cabinet, separated strong power and weak power design, easy to maintain.
China Gantry Fiber Laser Cutting Machine Factory
| Model | KCL-Gantry |
| Cutting size | 2000*6000mm/3000*12000mm/3000*16000mm |
| Lifting travel | ≤180mm |
| Working Voltage | 380V±10%, 3 Phase,50/60Hz |
| Application | Metal, Carbon Steel, Aluminium, Copper |
| Laser Control system | Cypcut/WeiHong/Raytools |
| Laser generator | Raycus/Germany-IPG/MAX |
| Laser cutting head | Shenzhen Max/Raytools |
| Laser Power | 1500W/3000W/6000W/12000W/20000W/30000W |
| Graphic format supported | AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP |
| X,Y axis repeated precision | ±0.02mm |
| Proportional Valve | Japan SMC |
| Machine body | Tube welding machine body |
| Guide rail | TAIWAN HIWIN/SYCK |
| Machine Structure | Gantry Fiber Lazer Cutting Machine |
| Longitudinal Rail | Linear rail/38kg track |
| Water Chiller | Hanli/Tongfei |
| Key Selling Points | Easy operation,competitive price |
| Warranty | 2 Years |
